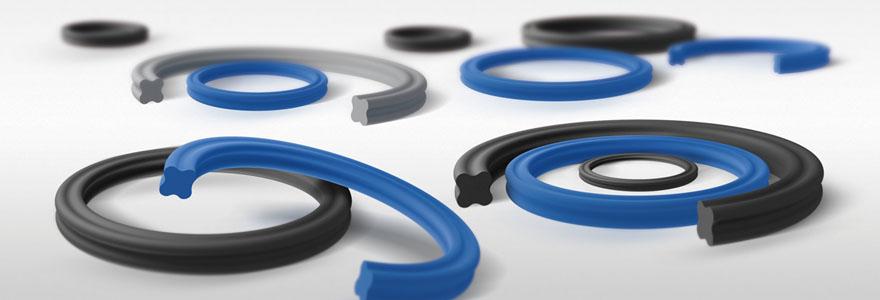

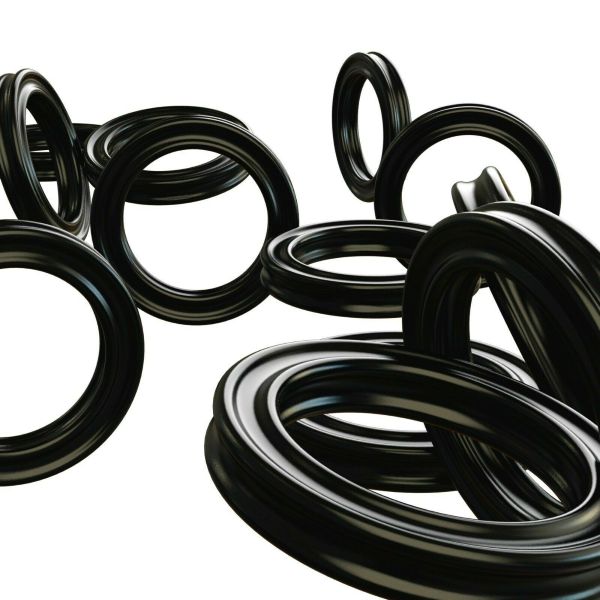

X-Rings

X-Rings have a sealing function doubling that of an o-ring, and can be used in numerous static and dynamic sealing applications.

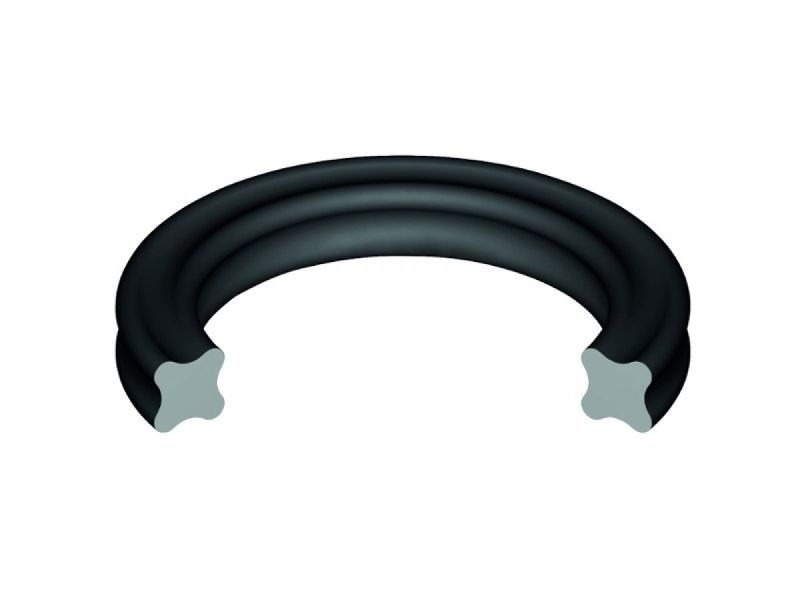

Compared to a standard o-ring, the four-lobed X-Ring profile maintains twice the sealing surface. The double-seal action requires less squeeze to maintain an effective seal function. With a reduction in squeeze, this yields lower friction and prolonged seal life.

To prevent leakage, which typically results from a parting line’s irregular surface on an o-ring, the parting lines on an X-Ring are between the lobes, and away from the sealing surface.

X-Rings are also made to surpass the performance of a standard o-ring in rotary seal applications. The four-lobed design produces a more secure seal to counteract spiral twisting. This allows the use of a narrower groove width than a standard o-ring groove, but can also be used in a standard o-ring groove.

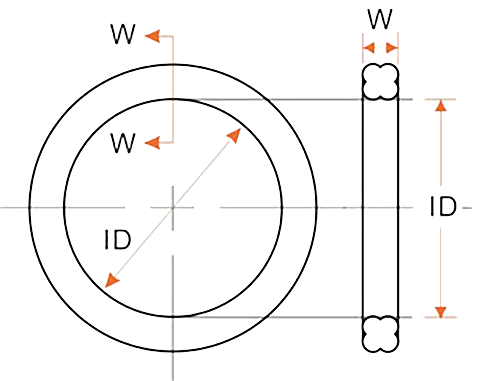

The X-Ring Cross-Section and ID are measured just like o-rings. Please refer to our sizing charts for dimensions. UNINOVO Seal offers X-Rings in standard AS568 sizes.

Advantages of X-Rings vs. O-Rings
Prevents contorting in the groove. The seal is not apt to roll in the groove with corresponding movement.
Low friction. It requires less radial squeeze compared to a standard o-ring.
Less wear due to low friction, thus providing a longer service life.
Excellent sealing efficiency with its special profile.
Improved startup with the lubricant reservoir formed between the sealing lips.
